Zusammenfassung Energiespeicher

\[ \begin{gathered} \text{Reale Spannungsquelle:} \\[6pt] U_{\mathrm{Aus}} = U_i - R_i \cdot I \\[6pt] R_i = \frac{U_{\mathrm{Leerlauf}}}{I_{\mathrm{Kurzschluss}}} = \frac{U_{\mathrm{Leerlauf}} - U_{\mathrm{Aus}}}{I_{\mathrm{Aus}}} \\[6pt] \text{Maximaler Ausgangsstrom eines Akkus: } I_{\max} = n \cdot \frac{C}{h} \\[10pt] \text{Reale Stromquelle:} \\[6pt] I_{\mathrm{Aus}} = I_0 - \frac{U_{\mathrm{Aus}}}{R_i} \end{gathered} \]
\[ \begin{gathered} \text{Wasserspeicher (Eimer):} \\[6pt] h(t_{\mathrm{Ende}}) = \frac{1}{A} \cdot \int_{t_{\mathrm{Start}}}^{t_{\mathrm{Ende}}} \dot{v}(t)\,dt + h_0(t_{\mathrm{Start}}) \end{gathered} \]

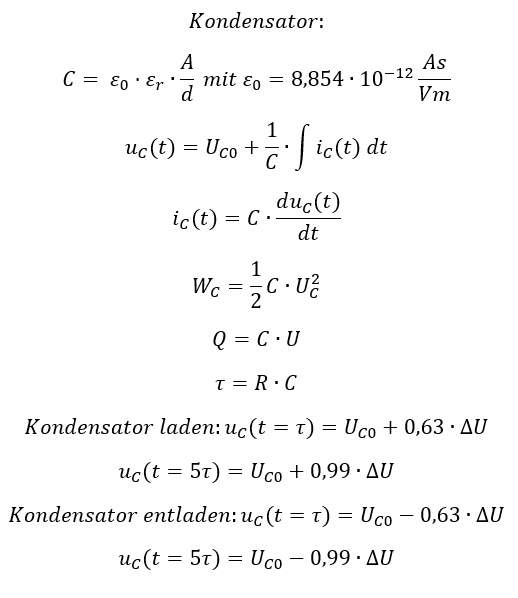

\[ \begin{gathered} \text{Kondensator:} \\[6pt] C = \varepsilon_0 \cdot \varepsilon_r \cdot \frac{A}{d} \text{ mit } \varepsilon_0 = 8{,}854 \cdot 10^{-12}\,\frac{\mathrm{As}}{\mathrm{Vm}} \\[6pt] u_C(t) = U_{C0} + \frac{1}{C} \cdot \int i_C(t)\,dt \\[6pt] i_C(t) = C \cdot \frac{du_C(t)}{dt} \\[6pt] W_C = \frac{1}{2} C \cdot U_C^2 \\[4pt] Q = C \cdot U \\[4pt] \tau = R \cdot C \\[6pt] \text{Kondensator laden: } u_C(t) = U_0 \left(1 - e^{-t/\tau}\right),\quad i_0(t) = \frac{U_0}{R} \cdot e^{-\frac{t}{\tau}}\quad (U_{C0} = 0\,\mathrm{V}) \\[6pt] \text{Kondensator entladen: } u_C(t) = U_0 \cdot e^{-t/\tau},\quad i_0(t) = -\frac{U_0}{R} \cdot e^{-\frac{t}{\tau}} \\[6pt] \text{Kondensator laden: } u_C(t = \tau) = U_{C0} + 0{,}63 \cdot \Delta U \\ u_C(t = 5\tau) = U_{C0} + 0{,}99 \cdot \Delta U \\[4pt] \text{Kondensator entladen: } u_C(t = \tau) = U_{C0} - 0{,}63 \cdot \Delta U \\ u_C(t = 5\tau) = U_{C0} - 0{,}99 \cdot \Delta U \\[6pt] \text{Kondensator in einer Schaltung: } \Delta U = \frac{i_C \cdot \Delta t}{C},\quad C = \frac{i \cdot \Delta t}{\Delta U} \end{gathered} \]

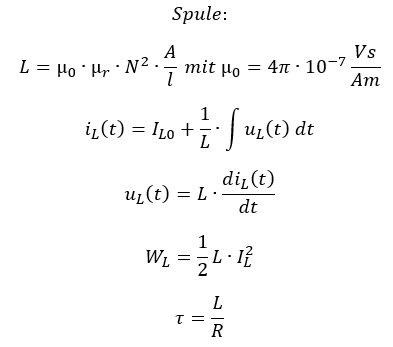

\[ \begin{gathered} \text{Spule:} \\[6pt] L = \mu_0 \cdot \mu_r \cdot N^2 \cdot \frac{A}{l} \text{ mit } \mu_0 = 4\pi \cdot 10^{-7}\,\frac{\mathrm{Vs}}{\mathrm{Am}} \\[6pt] i_L(t) = I_{L0} + \frac{1}{L} \cdot \int u_L(t)\,dt \\[6pt] u_L(t) = L \cdot \frac{di_L(t)}{dt} \\[6pt] u_L \text{ abschnittsweise konstant: } i_L(t) = \frac{1}{L} \cdot \Delta U \cdot \Delta t + I_{L0} \\[6pt] W_L = \frac{1}{2} L \cdot I_L^2 \\[6pt] \tau = \frac{L}{R} \\[6pt] \text{Spule und Widerstand: } u_L(t) = U_0 \cdot e^{-t/\tau},\quad i_L(t) = \frac{U_0}{R} \cdot \left(1 - e^{-\frac{t}{\tau}}\right) \end{gathered} \]

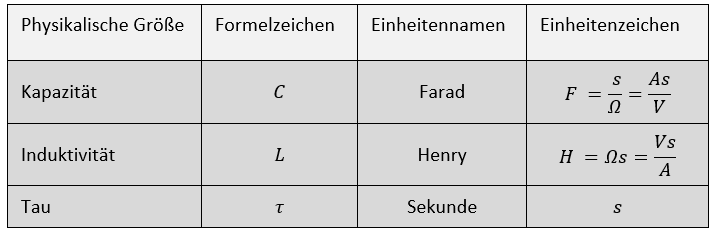

Physikalische GrößeFormelzeichenEinheitennamenEinheitenzeichen
Kapazität\(C\)Farad\(\mathrm{F} = \dfrac{\mathrm{s}}{\Omega} = \dfrac{\mathrm{As}}{\mathrm{V}}\)
Induktivität\(L\)Henry\(\mathrm{H} = \Omega\mathrm{s} = \dfrac{\mathrm{Vs}}{\mathrm{A}}\)
Tau\(\tau\)Sekunde\(\mathrm{s}\)
