Zusammenfassung Wechselstrom
Folgende Formeln wurden im Kapitel Wechselstrom verwendet:
\[

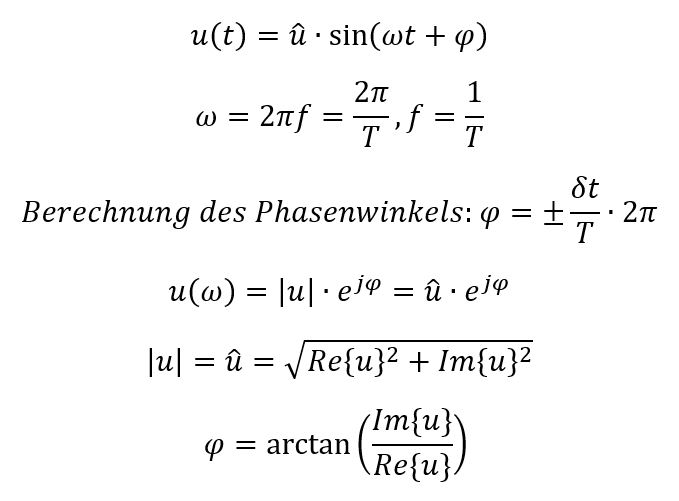

\begin{gathered}
u(t) = \hat{u} \cdot \sin(\omega t + \varphi) \\[6pt]
\omega = 2\pi f = \frac{2\pi}{T},\; f = \frac{1}{T} \\[6pt]
\text{Berechnung des Phasenwinkels: } \varphi = -\frac{\Delta t}{T} \cdot 2\pi \\[6pt]
\cos(\omega t) = \sin\left(\omega t + \frac{\pi}{2}\right),\; \sin(\omega t) = \cos\left(\omega t - \frac{\pi}{2}\right) \longrightarrow \textbf{cos} \text{ eilt } \textbf{sin} \text{ um } \pi/2 \text{ voraus} \\[6pt]
u(\omega) = |u| \cdot e^{j\varphi} = \hat{u} \cdot e^{j\varphi} \\[6pt]
|u| = \hat{u} = \sqrt{\mathrm{Re}\{u\}^2 + \mathrm{Im}\{u\}^2} \\[6pt]
\varphi = \arctan\left(\frac{\mathrm{Im}\{u\}}{\mathrm{Re}\{u\}}\right) \\[6pt]
\cos(\varphi) + j\sin(\varphi) = e^{j\varphi} \\[6pt]
\mathrm{Re}\{Z\} = |Z| \cdot \cos(\varphi),\; \mathrm{Im}\{Z\} = |Z| \cdot \sin(\varphi) \\[6pt]
Z_1 = P \cdot e^{jQ},\; Z_2 = R \cdot e^{jS}\text{:}\; Z_1 \cdot Z_2 = P \cdot R \cdot e^{j(Q+S)},\; \frac{Z_1}{Z_2} = \frac{P}{R} \cdot e^{j(Q-S)} \\[6pt]
j^2 = -1,\; e^{j0} = 1,\; e^{j\frac{\pi}{2}} = j,\; e^{j\pi} = -1,\; e^{j\frac{3}{2}\pi} = -j
\end{gathered}
\]
\[
\begin{gathered}

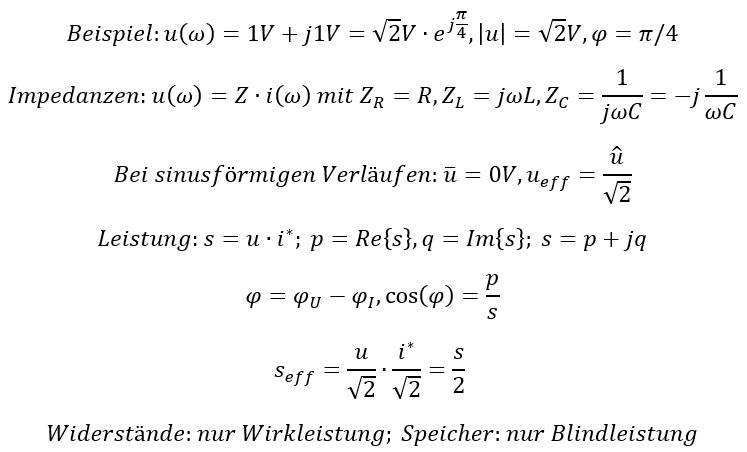

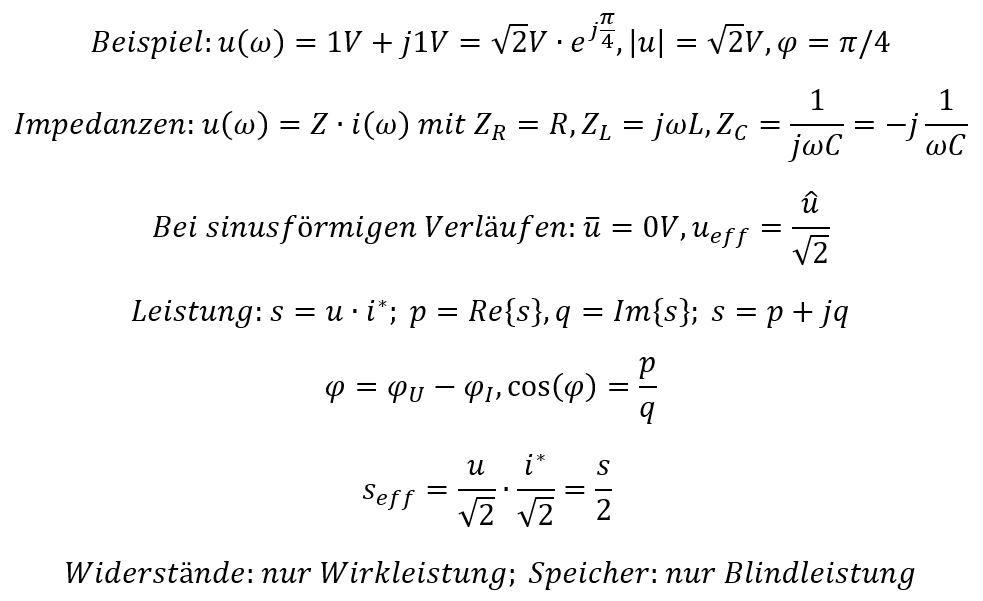

\text{Beispiel: } u(\omega) = 1\,\mathrm{V} + j1\,\mathrm{V} = \sqrt{2}\,\mathrm{V} \cdot e^{j\frac{\pi}{4}},\; |u| = \sqrt{2}\,\mathrm{V},\; \varphi = \pi/4 \\[6pt]
\text{Impedanzen: } u(\omega) = Z \cdot i(\omega) \text{ mit } Z_R = R,\; Z_L = j\omega L,\; Z_C = \frac{1}{j\omega C} = -j\frac{1}{\omega C} \\[6pt]
\text{Impedanzen wie Widerstände zusammenfassen, z. B.: } Z_R || Z_C = \frac{Z_R \cdot Z_C}{Z_R + Z_C},\; Z_{\mathrm{Ges}} = Z_R || Z_C + Z_L \\[6pt]
\text{Für } f = 0\,\mathrm{Hz}\text{ gilt: } Z_L = 0\,\Omega,\; Z_C \rightarrow \infty;\quad \text{Für } f \rightarrow \infty\text{ gilt: } Z_L \rightarrow \infty,\; Z_C \rightarrow 0\,\Omega \\[6pt]
\text{Allgemein: } \overline{u} = \frac{1}{T} \int u(t)\,dt,\; U_{\mathrm{eff}} = \sqrt{\frac{1}{T} \int_0^T u^2(t)\,dt} \\[6pt]
\text{Bei sinusförmigen Verläufen: } \overline{u} = 0\,\mathrm{V},\; u_{\mathrm{eff}} = \frac{\hat{u}}{\sqrt{2}} \\[6pt]
\text{Leistung: } s = u \cdot i^*;\; p = \mathrm{Re}\{s\},\; q = \mathrm{Im}\{s\};\; s = p + jq \\[6pt]
\varphi = \varphi_u - \varphi_i,\; \cos(\varphi) = \frac{p}{|s|} \\[6pt]
|s| = \sqrt{p^2 + q^2},\; p = |s| \cdot \cos(\varphi),\; q = |s| \cdot \sin(\varphi),\; \varphi = \arctan\left(\frac{q}{p}\right) \\[6pt]
s_{\mathrm{Ges}}(\omega) = s_1(\omega) + s_2(\omega) \\[6pt]
\text{Wirkleistung }(\varphi = 0)\text{: } p(t) = \frac{\hat{u} \cdot \hat{\imath}}{2} \left(1 - \cos(2\omega t)\right) \\[6pt]
\text{Blindleistung }(\varphi = \frac{\pi}{2})\text{: } q(t) = \frac{\hat{u} \cdot \hat{\imath}}{2} \cdot \sin(2\omega t) \\[6pt]
s_{\mathrm{eff}} = \frac{u}{\sqrt{2}} \cdot \frac{i^*}{\sqrt{2}} = \frac{s}{2} \\[6pt]
\text{Widerstände: nur Wirkleistung; Speicher: nur Blindleistung}
\end{gathered}
\]

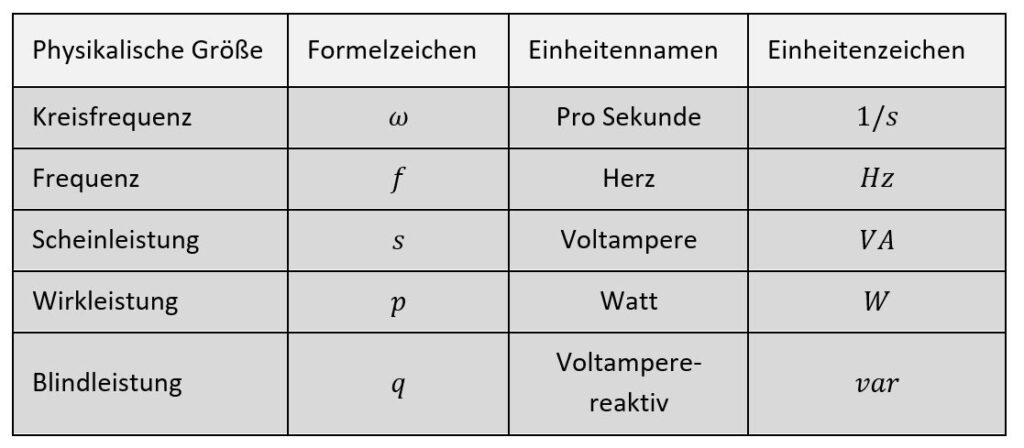

| Physikalische Größe | Formelzeichen | Einheitennamen | Einheitenzeichen |
|---|---|---|---|
| Kreisfrequenz | \(\omega\) | Pro Sekunde | \(1/\mathrm{s}\) |
| Frequenz | \(f\) | Hertz | \(\mathrm{Hz}\) |
| Scheinleistung | \(s\) | Voltampere | \(\mathrm{VA}\) |
| Wirkleistung | \(p\) | Watt | \(\mathrm{W}\) |
| Blindleistung | \(q\) | Voltampere-reaktiv | \(\mathrm{var}\) |
